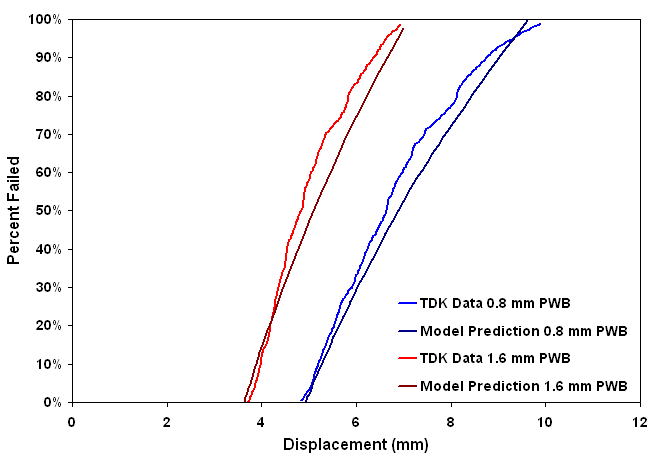

| Model
validation example of an 0805 size capacitor on 1.6 mm and 0.8 mm
printed wiring boards |
||
 |
||
|
MLCC Manufacturer: TDK
MLCC Size: 0805 Solder Joint Type: nominal Solder Pad Width: 90% PWB Thickness: 1.6 and 0.8 mm PWB Span: 90 mm PWB Support Conditions: Simple |
||
|
|
